Sistem analiza Century 1000 pentru holtere

Sistem analiza Century 1000 pentru holtere

Detalii produs

Categoria: Cardiologie
Firma: Sales Promotion Agency

Overview

Affordable and easy-to-use Holter analysis software designed by the company that's been scanning Holters for more than thirty years.

The Century 1000 runs on the MS Windows platform and is an ideal entry system for the physicians' office or low-volume institution. Minimal user interaction is required during the analysis stage of the scan. Sophisticated tools permit the user to retrospectively edit arrhythmia templates, validate rhythms, review saved strips, and prepare flexible report formats, including tables, diagnostic strips, trends, and full disclosure. Additional trend tools permit review, editing, page-viewing, and strip-saving from the entire Electrocardiogram (ECG) record.

Specifications

Analysis Tools and Capabilities

  • 2 channel arrhythmia analysis, either user-selectable or automatic
  • 3 channel ST segment analysis
  • QT analysis on any single channel
  • Time-domain Heart Rate Variability
  • Supports sampling rates from 128 to 1024

 Holter Recorder Compatibility

  • Datrix VX3 Digital Holter recorders
  • Braemar DL and DXP series Digital Holter Recorders
  • ELA SpiderView™ Digital Holter Recorder
  • Cassette Recorders (system option)

 Software Features

  • Automated arrhythmia analysis including retrospective editing tools

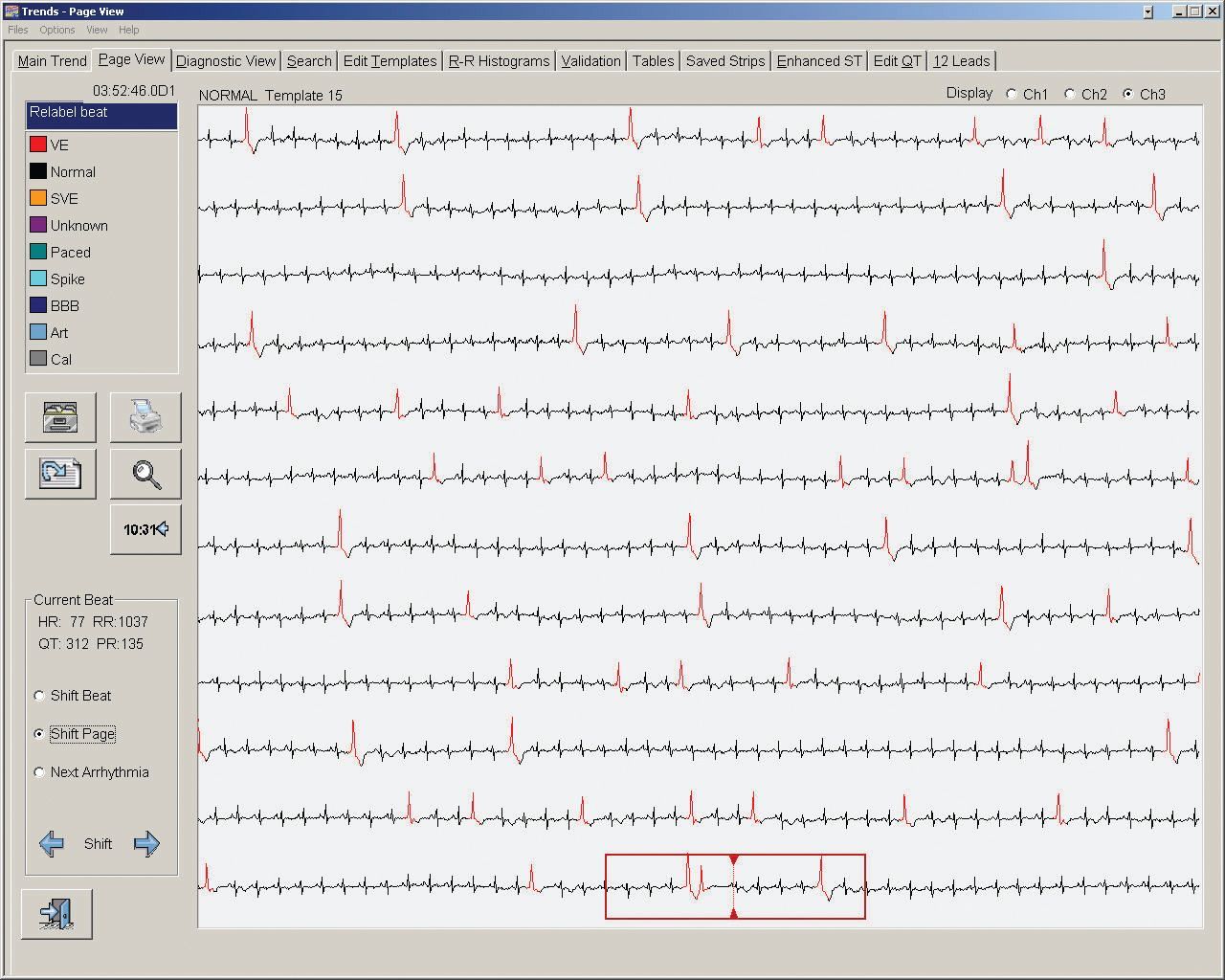

  • Page-mode display with color-coded beat highlighting
  • Template Editing with the ability to superimpose within any individual templates
  • RR Interval histograms and scatter plots
  • Validation Display for rapid identification of significant events
  • On-screen display of all analysis tables with editing capabilities
  • Point-and-Click Beat Editing

 Final Report Options*

  • Cover Page (Paragraph or Tabular)
  • General Table
  • Supraventricular Ectopy Table
  • Ventricular Ectopy Table
  • Bradycardia Table
  • Pacemaker Activity Table
  • ST and Heart Rate Trend
  • Ectopy Histograms
  • Heart Rate Variability
  • Strip List Summary
  • Diagnostic Strips
  • Patient Event Strips
  • Significant Event Strips
  • Full Disclosure
*Reports can be customized to include any or all of thesections listed above. The cover page can be customizedwith your logo and paragraph text that is specific to yourfacility or to individual referring physicians.

Century 1000 Configurations

The system is available as software-only (includes flash card reader or recorder interface cable) or can be furnished as a complete solution including computer hardware and printer.
